X6436 Universal Vertical Turret Milling Machine

Product Categories
Shandong HR Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

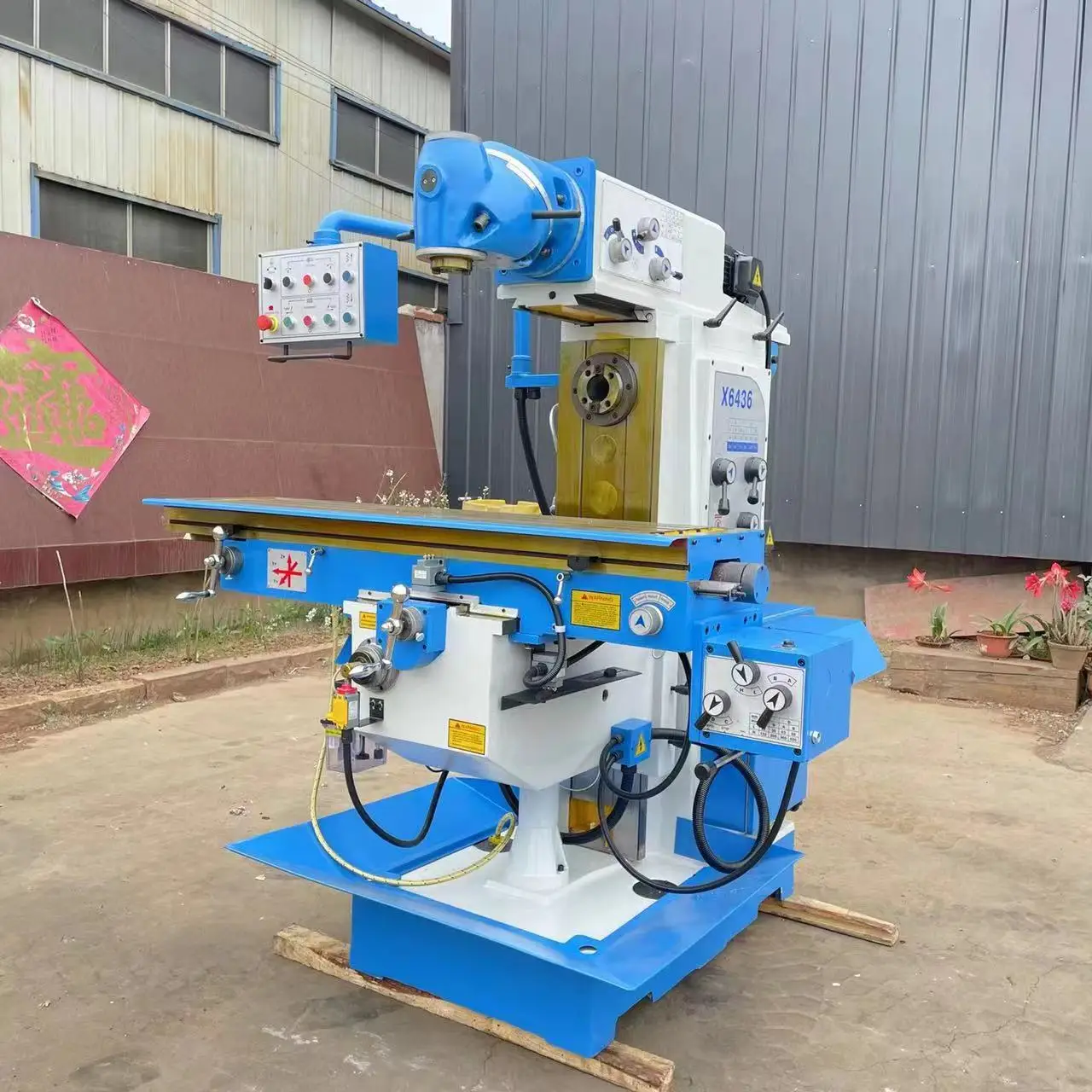

X6436 Universal Vertical Turret Milling Machine

  • 1
  • 2

Brand Name : HR

Model Number : x6436

Certification : ceiso

Place of Origin : china

MOQ : 1set

Price : usd4500-6000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 40set/month

Delivery Time : 30days

Packaging Details : standard export package(plywood case)

parameter : X6436 Universal rotary milling machine

Taper of spindle taper hole : 7：24 ISO40 （V）tso050(H）

Distance from vertical spindle hole center to column surface : 350-850mm

Distance from end face of vertical spindle to worktable : 210-710mm

Distance from horizontal spindle center to workbench   : 0-500mm

Power of table motor feed motor : 750w

Workbench size : 1500×360mm

Table travel (longitudinal / transverse / vertical)   : 1000/350/500mm

Contact Now

vertical turret milling machine X6436 Universal milling machine
Product Description
Application: 1, Universal radial milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling. extensive use of performance 2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. 3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.X6436 Universal Vertical Turret Milling Machine
parameter
X6436 Universal rotary milling machine
Taper of spindle taper hole
7:24 ISO40 (V)tso050(H)
Distance from vertical spindle hole center to column surface
350-850mm
Distance from end face of vertical spindle to worktable
210-710mm
Distance from horizontal spindle center to workbench
0-500mm
Distance from horizontal spindle center to lower plane of RAM
175mm
Distance from vertical spindle hole center to column surface
(11 steps)35-1600mm
(12 steps)60-1800(H)mm
Workbench size
1500×360mm
Table travel (longitudinal / transverse / vertical)
1000/350/500mm
Longitudinal / transverse motorized feed speed of workbench
15-370(8 steps)810(Fast forward)mm
Vertical motorized lifting speed of workbench
590mm/min
Number / width / spacing of T-shaped slots on the workbench
3/18/80mm
Power of main drive motor
4(V) 5.5(H)kw
Power of table motor feed motor
750w
Lifting table lifting feed motor power
1100w
Cooling pump motor power
90w
Cooling pump flow
25L/MIN
Overall dimension
2600kg
Machine weight
2220×1790×1980mm
Application
X6436 Universal Vertical Turret Milling Machine
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packing & Delivery
X6436 Universal Vertical Turret Milling Machine
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
X6436 Universal Vertical Turret Milling Machine
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company Profile
X6436 Universal Vertical Turret Milling Machine

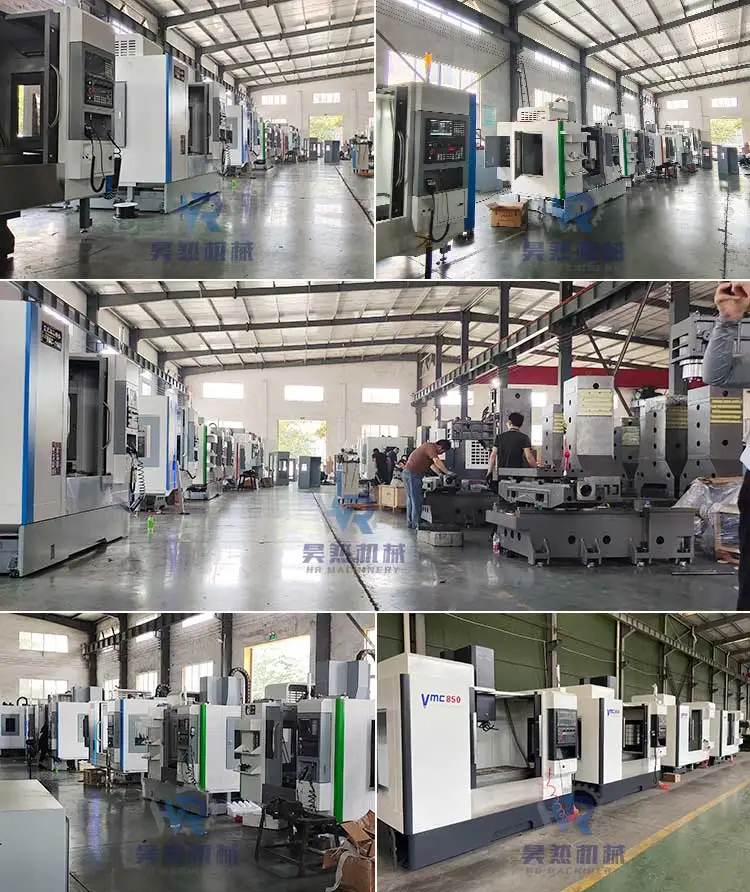

Shandong HR machinery Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Customer visiting
X6436 Universal Vertical Turret Milling Machine
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1.What CNC system do you use? A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice. 2. Payment Terms A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4.How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 5.Where is our factory located? How can I visit there? A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us. 6.What's the MOQ? A: 1 set . 7.How long is the machine warranty? A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
